'When gold stops glittering...'

PAPER, JOURNAL OF ANALYTICAL ATOMIC SPECTROMETRY

• I. Tissot*^a,b, J. Correia^b, O.C. Monteiro^c, M.A. Barreiros^d and M.F. Guerra^e. 2019. When gold stops glittering: corrosion mechanisms of René Lalique's Art Nouveau jewellery. In Journal of Analytical Atomic Spectrometry, 34, 1216-1222.

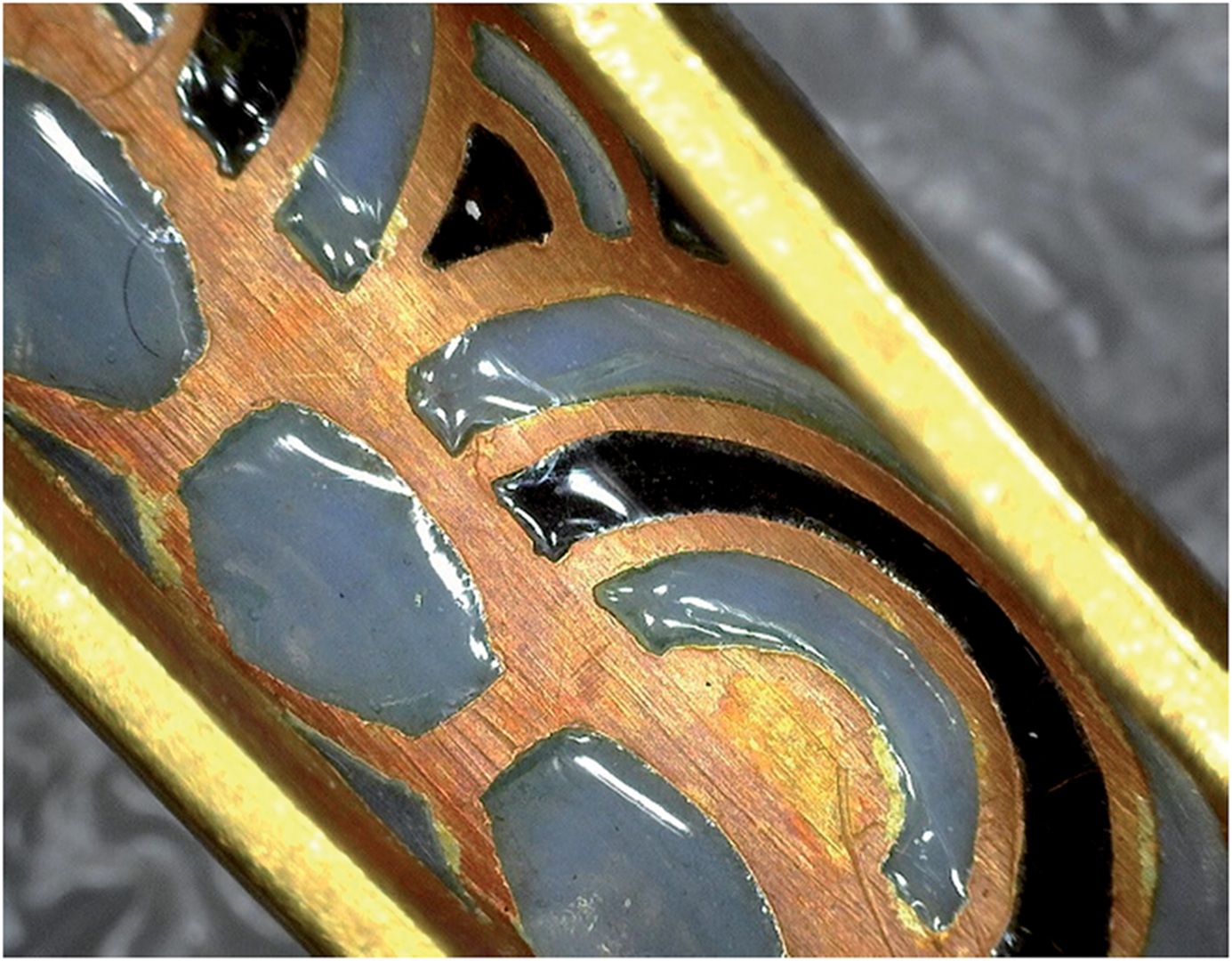

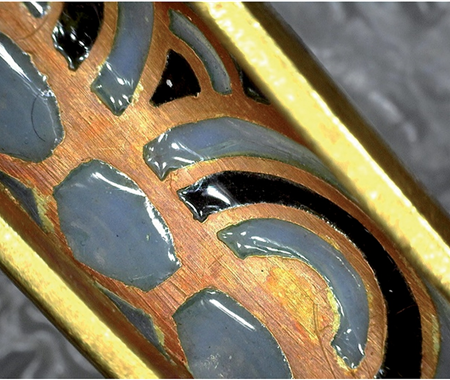

  When gold stops glittering: corrosion mechanisms of René Lalique's Art Nouveau jewellery

^{* Corresponding author  a Archeofactu  b Laboratory LIBPhys, NOVA University Lisbon  c Centre for Chemistry and Biochemistry, FC-UL
d National Laboratory of Energy and Geology, LNEG, LEN/UER  e UMR 8096 CNRS - ArchAm, MAE, France}

^{Abstract
Art Nouveau jewellery created by Ren´e Lalique is presently corroded. To identify the corrosion processes, Au–Ag–Cu alloys with compositions comparable to those used in Ren´e Lalique's jewellery were fabricated to be exposed to sulphide-containing environments. Using SEM-EDS, XRD, UV-Vis spectroscopy and ellipsometry, it was for the first time demonstrated that at the surface of tarnished Au alloys forms a corrosion film with a layer-by-layer structure. Considering the complex refractive indices of bulk Cu and Ag oxides and sulphides, a two-step corrosion mechanism was proposed. The formation of Cu-based compounds during the early corrosion stages is followed by the formation of Ag-based compounds. The thickness of the formed film, shown for one of the gold alloys to be 80 nm, is due to the corrosion kinetics controlled by the presence of Au and by the formation of a Au–S self-assembled monolayer. The corrosion mechanism of gold alloys raises a new conservation challenge concerning the removal of nanometric layers.}
